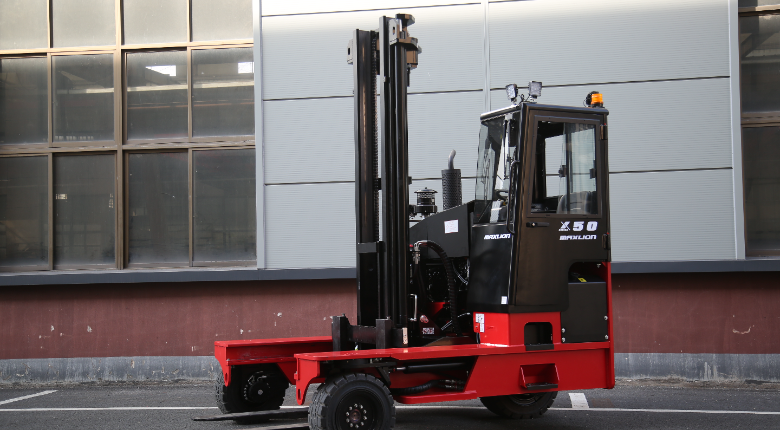

X Series 3.5-5.0T Multi-directional Side Loader

Maxlion Multi-Side Loader

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

Maxlion side loader forklifts represent a pinnacle in materialhandling innovation, particularly when it comes to managing lengthyand challenging loads within limited space environments.

Features

Simple, Solid, Durable Efficient Handling of Long Loads High Space Utilization Electronic Control System Reliable Mechanical Valve Operation Limited Brand Competition Lead Time Advantage

Application

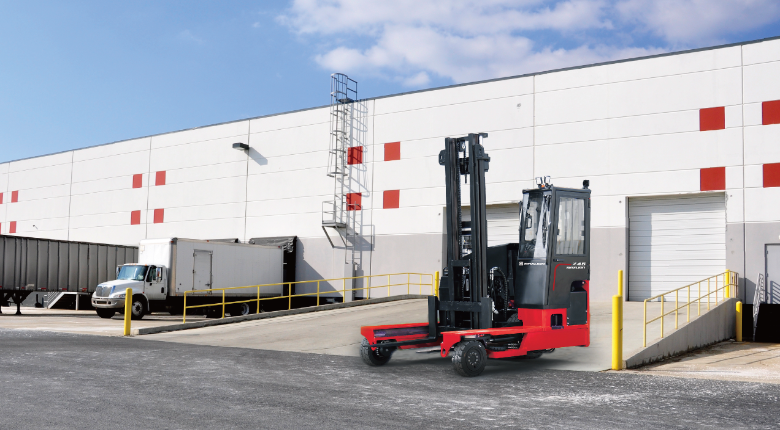

Warehousing & Logistics

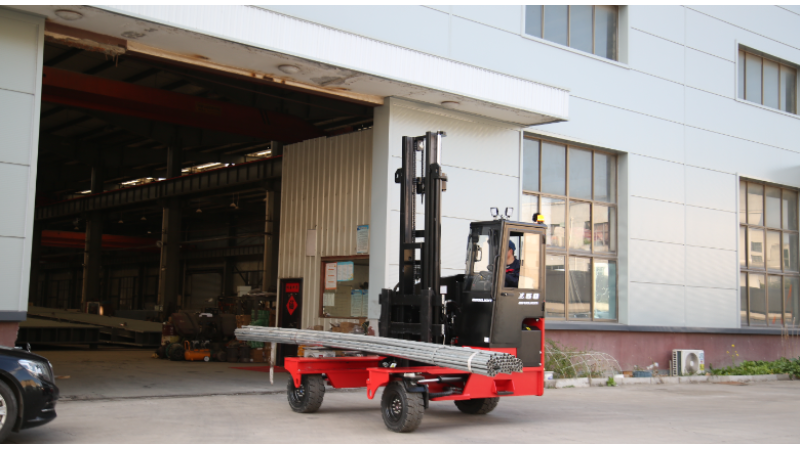

Manufacturing

Food Beverage

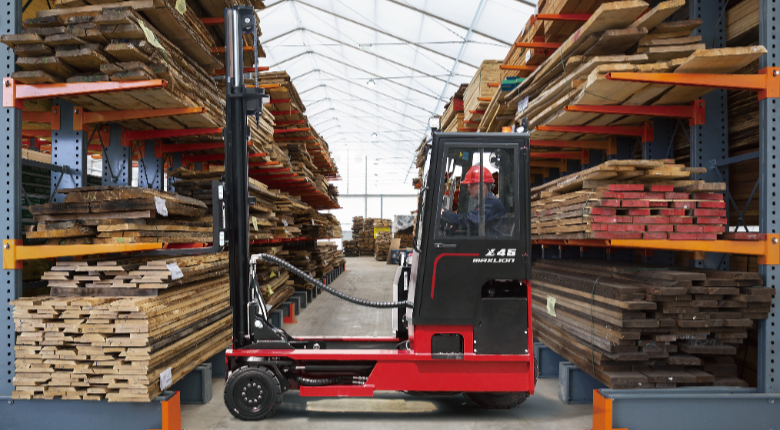

Forestry wood & Agriculture

Construction & Mining

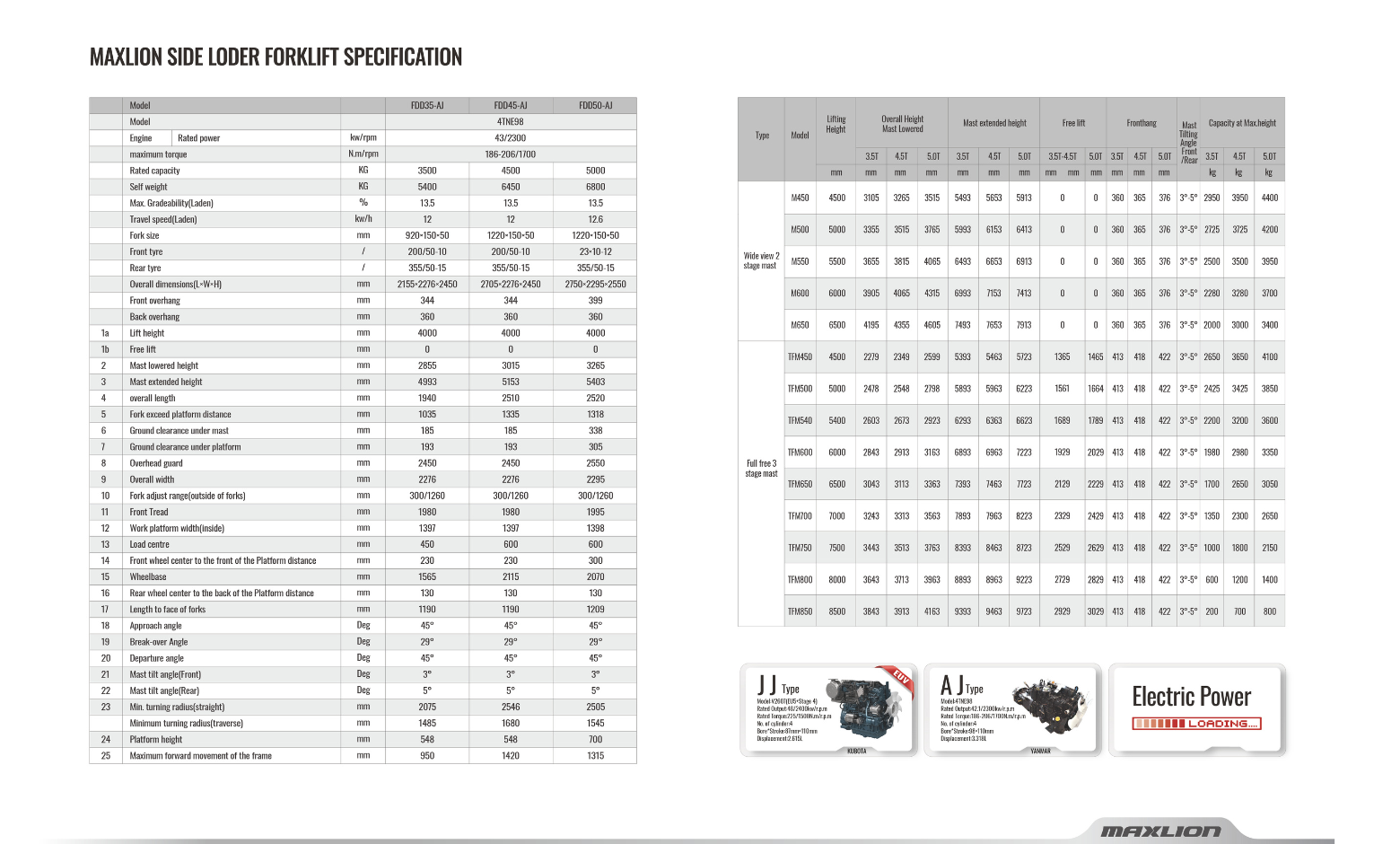

Tech Specs

Characteristics

Model	FDR35	FDR40	FDR45	FDR50
Power type	Diesel
Optional engine	Yanmar 4TNE98/Kubota 2607-T EU5
Lift height	4000mm	4000mm	4000mm	4000mm
Mast lowered height	2855mm	3015mm	3015mm	3265mm
Mast extended height	4993mm	5153mm	5153mm	5403mm
overall length	1950mm	2300mm	2500mm	2500mm
Ground clearance under mast	185mm	185mm	185mm	305mm
Overhead guard	2450mm	2450mm	2450mm	2600mm
Overall width	2268mm	2268mm	2268mm	2290mm
Fork adjust range(outside of forks)	300/1260mm	300/1260mm	300/1260mm	300/1260mm
Load centre	450mm	600mm	600mm	600mm
Length to face of forks	1130mm	1130mm	1130mm	1209mm
Approach angle	45º	45º	45º	45º
Min. turning radius(outside)	2055mm	2354mm	2530mm	2546mm
Forward distant	950mm	1300mm	1420mm	1315mm
Travel speed(Laden)	12km/h	12km/h	12km/h	12.6km/h
Max. Gradeability(Laden)	13.5%	13.5%	13.5%	13.5%
