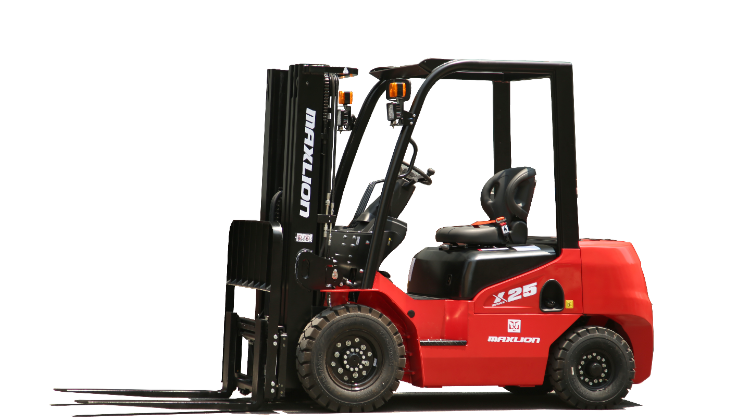

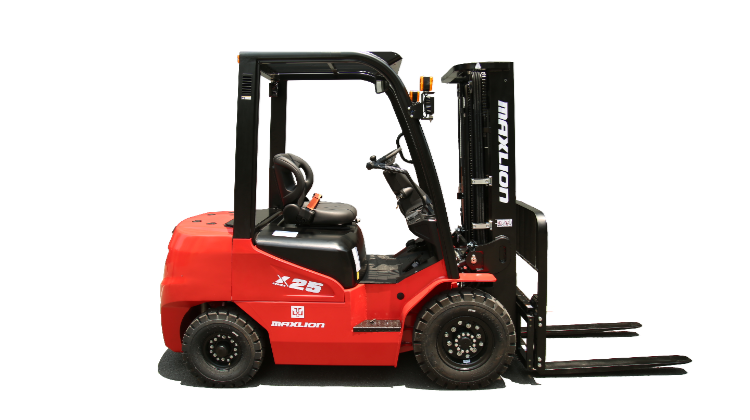

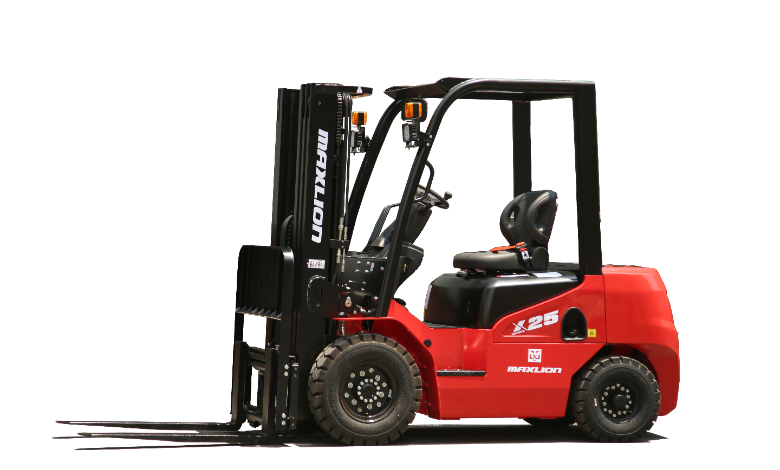

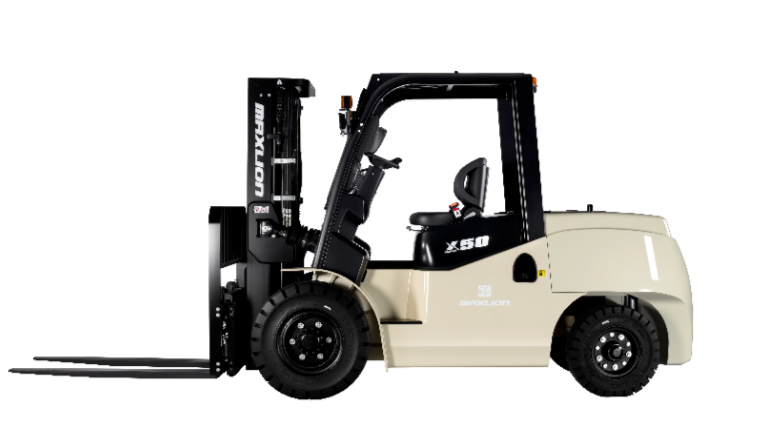

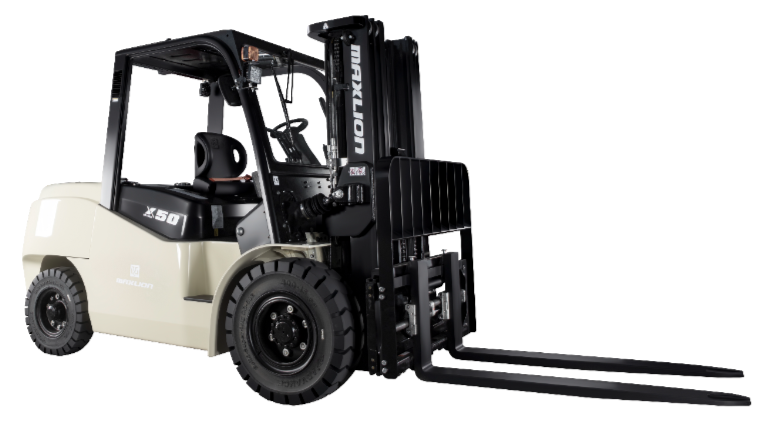

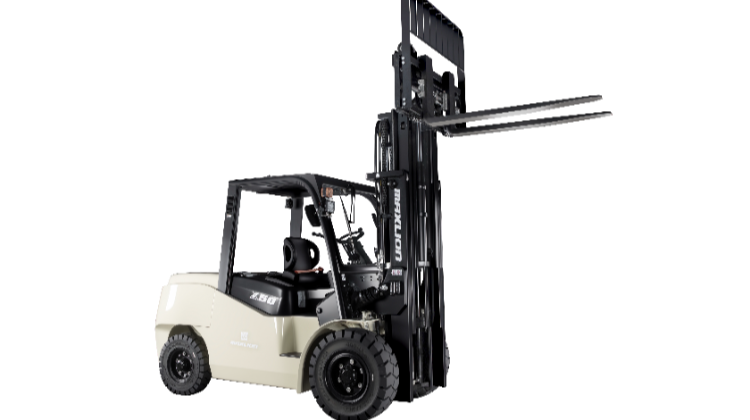

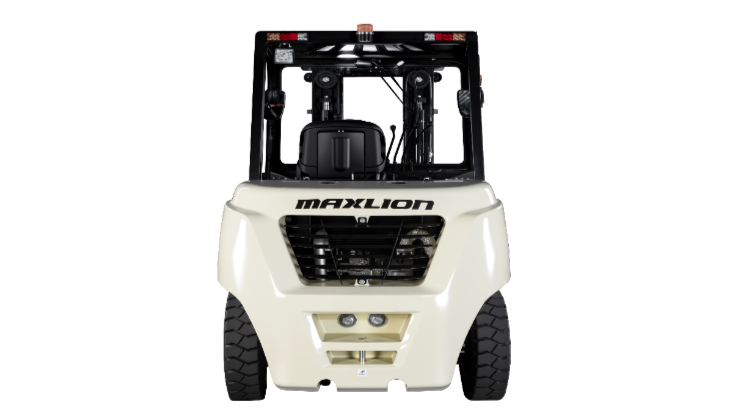

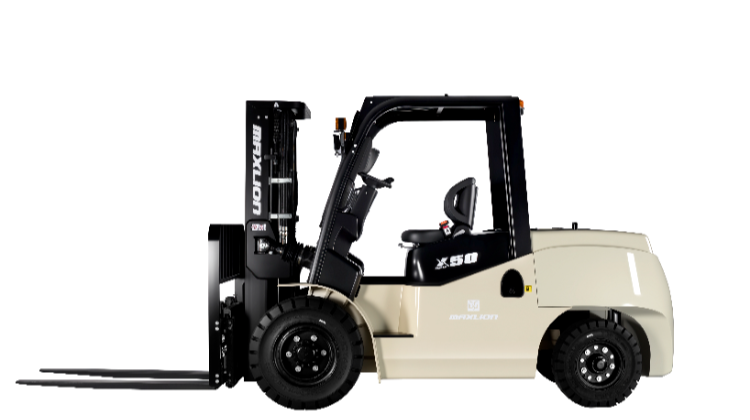

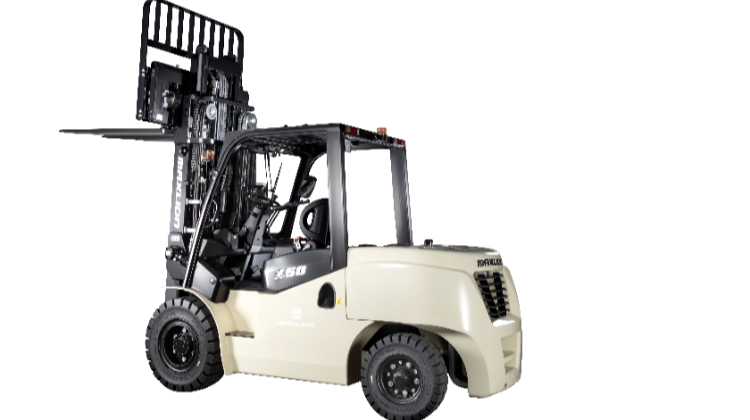

X Series Diesel 1.8-3.8T

Maxlion's X Series Forklift is designed for the driver. Maxlion engineers have focused on improving the comfort and safety for new series forklifts, with lower noise levels, less vibration, more safety, and every small detail carefully designed prepared for the driver.

Simple, Solid, Durable

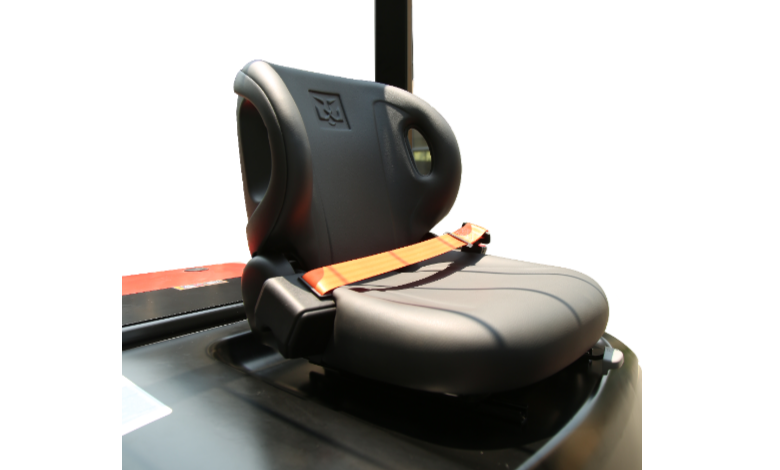

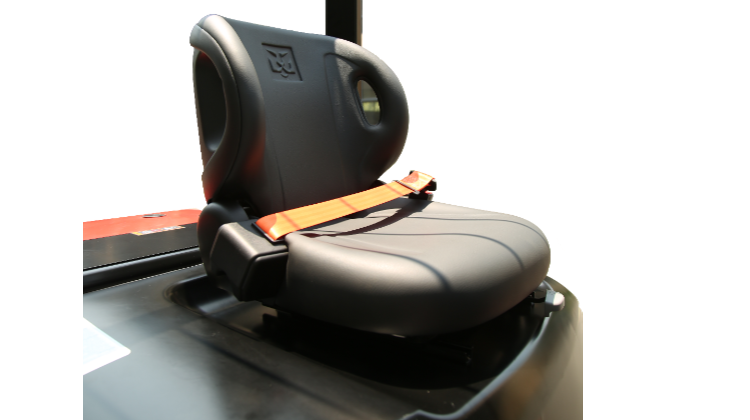

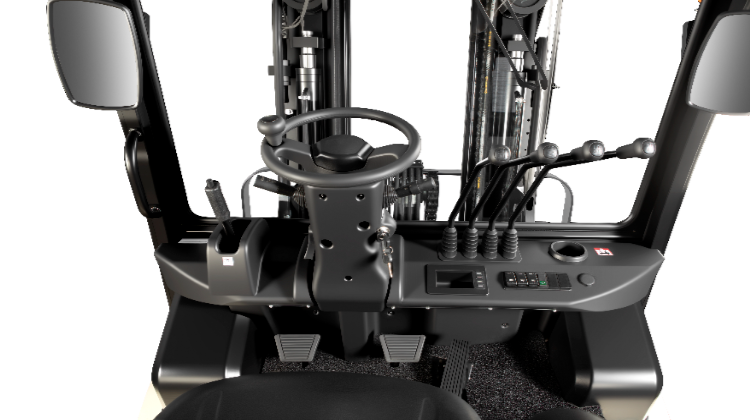

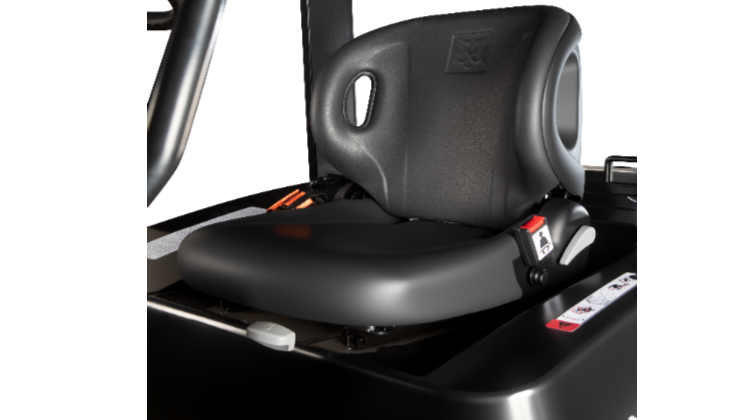

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

"Maxlion independently developed the new product, an innovative line of intenal combustion counterbalance forklifts, integrating cutting-edge technologies from its original products. This revamped series prioritizes enhanced aesthetics, energy efficiency, eco-friendliness, operator comfort.security, and reliability. These advancements aim to position the new series as a top-tier forklift range meeting diverse operational needs on a global scale"

Features

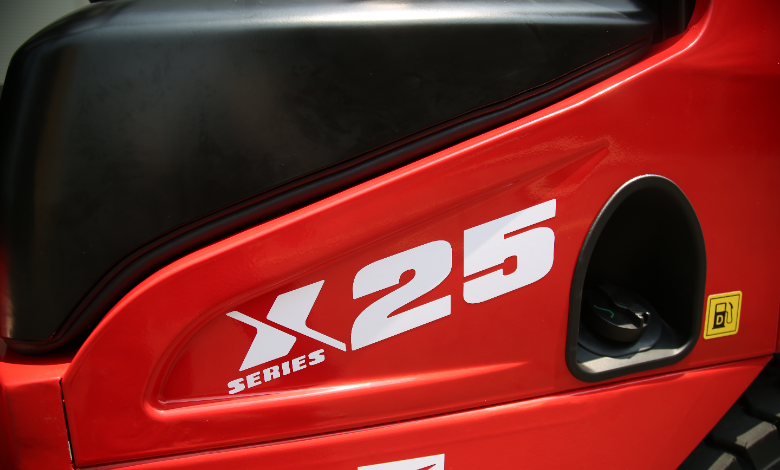

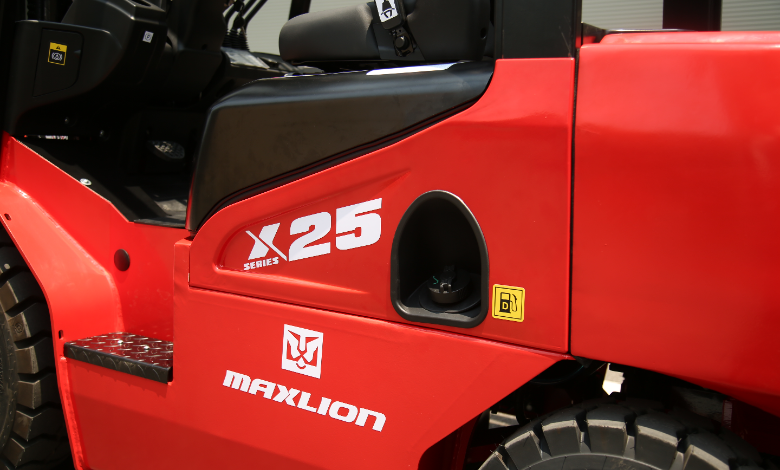

Simple, Solid, Durable Premium Exterior Design Ergonomic Design for Comfort

Application

Retail & Wholesale

Warehousing & Logistics

Manufacturing

Food Beverage

Forestry wood & Agriculture

Construction & Mining

Ports & Terminals

Livestock Industry

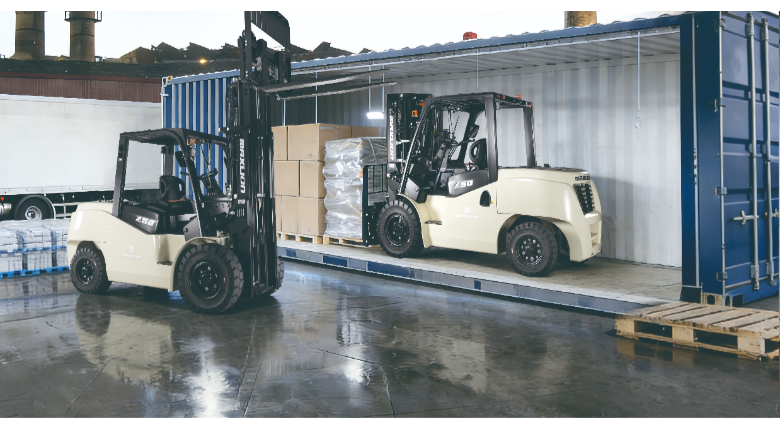

Forklift Container Unloading

Tech Specs

Characteristics

Model			FD18	FD20	FD25	FD30	FD35	FD38
Power type			Diesel

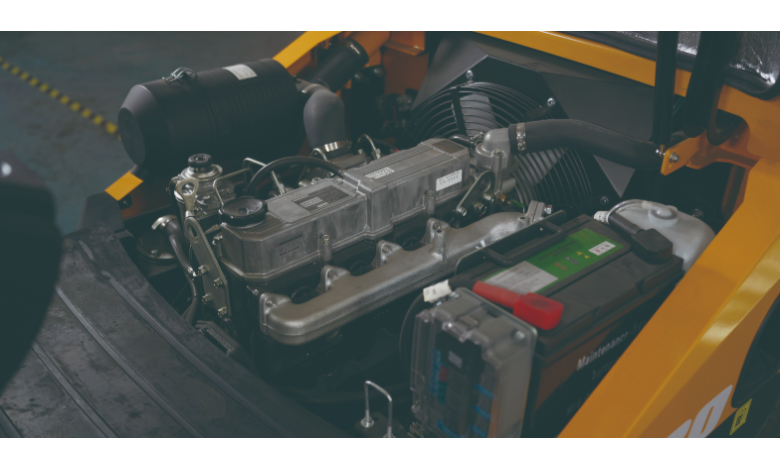

Optional engine			LS L4CRV-T6 (EUV/EPA4) 、Yanmar 4TNE98、Mitsubishi S4S
Rated capacity			1800kg	2000kg	2500kg	3000kg	3500kg	3800kg
Load centre			500mm
Min. turning radius			2080	2180	2230	2450	2520	2545
Lift height			3000mm
Overall Dimension	Length(without fork)		2285	2560	2620	2700	2770	2798
Width			1090	1150	1150	1210	1210	1210
Height when mast lowered			2010	2010	2010	2075	2150	2150
Height to safeguard			2105	2180	2180	2205	2205	2205
Speed	Travel(Unladen/Laden)	km/h	17/16	18/17	18/17	19/18	19/18	19/17
Lifting(Unladen/Laden)	mm/sec		550/520	560/540	560/540	460/440	370/360	370/340

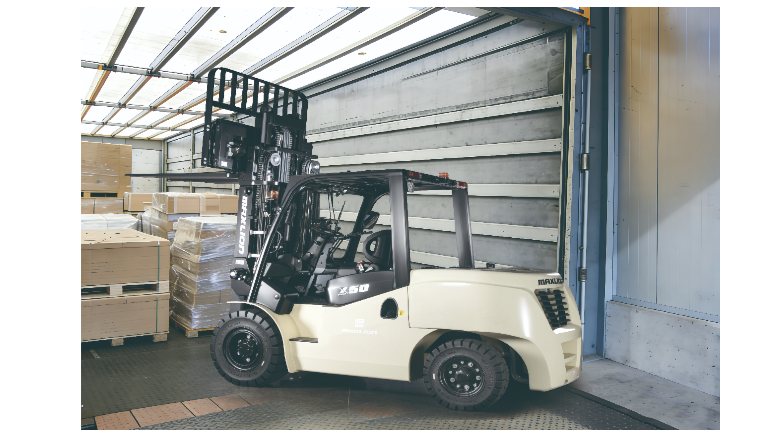

On-site Showcase
