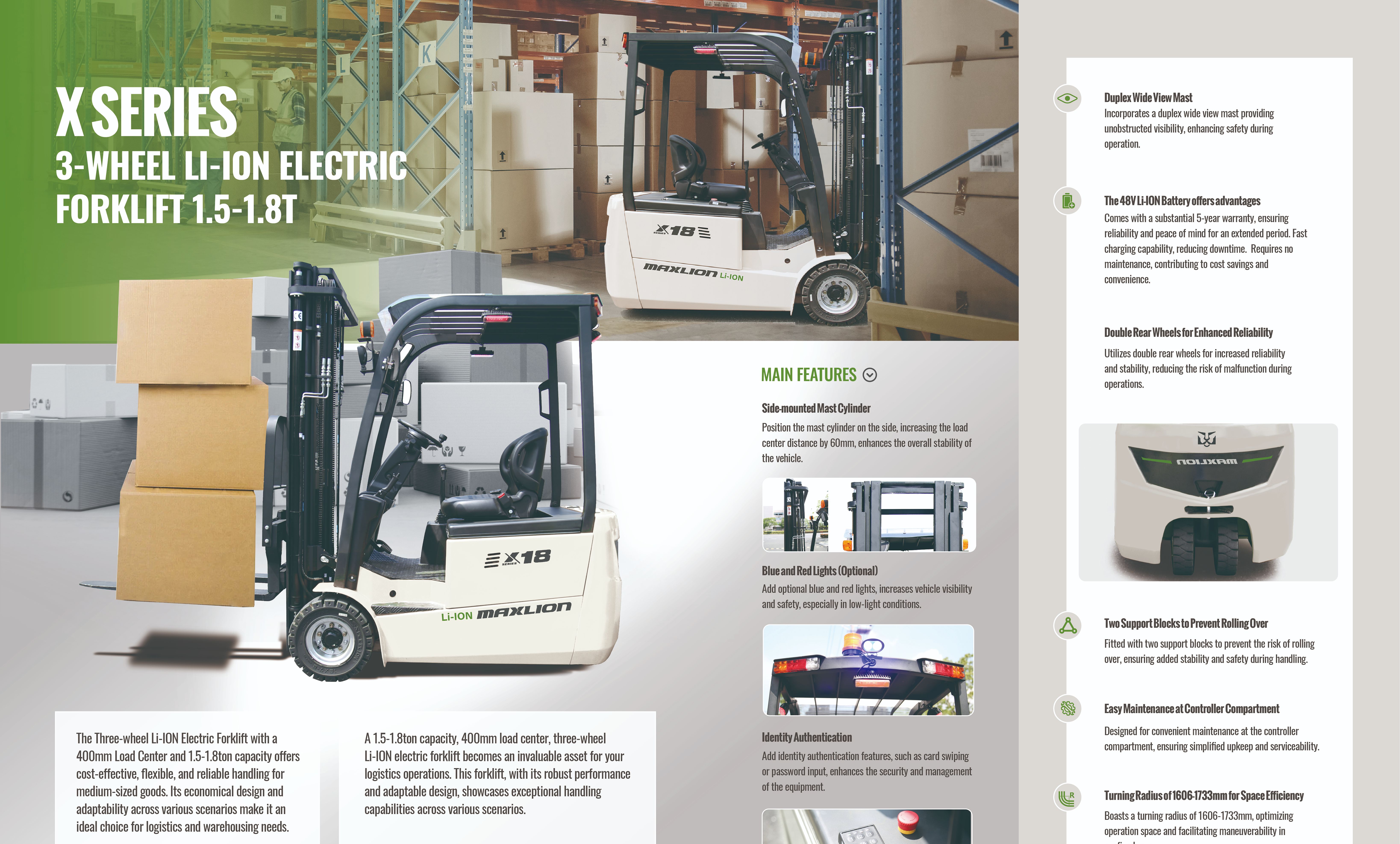

X Series Light Duty 3-Wheel Li-ion Electric Forklift 1.5-1.8T

Maxlion's X Series Forklift is designed for the driver. Maxlion engineers have focused on improving the comfort and safety for new series forklifts, with lower noise levels, less vibration, more safety, and every small detail carefully designed prepared for the driver.

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

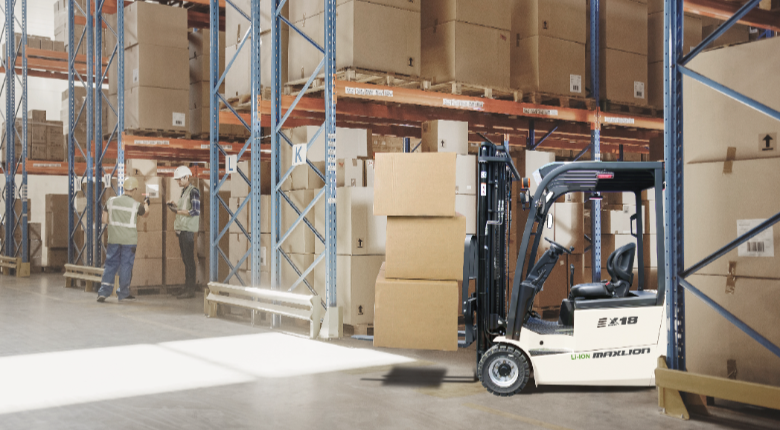

On-site show

Equipment Application

"1.5-1.8ton capacity, 400mm load center, three-wheel Li-ION electric forkift becomes an invalable asset for your logistics operations. This forklift, with its robust performance and adaptable design, showcases exceptional handling capabilfties across various scenarios."

Features

Simple, Solid, Durable Premium Exterior Design Ergonomic Design for Comfort

Application

Retail & Wholesale

Warehousing & Logistics

Manufacturing

Food Beverage

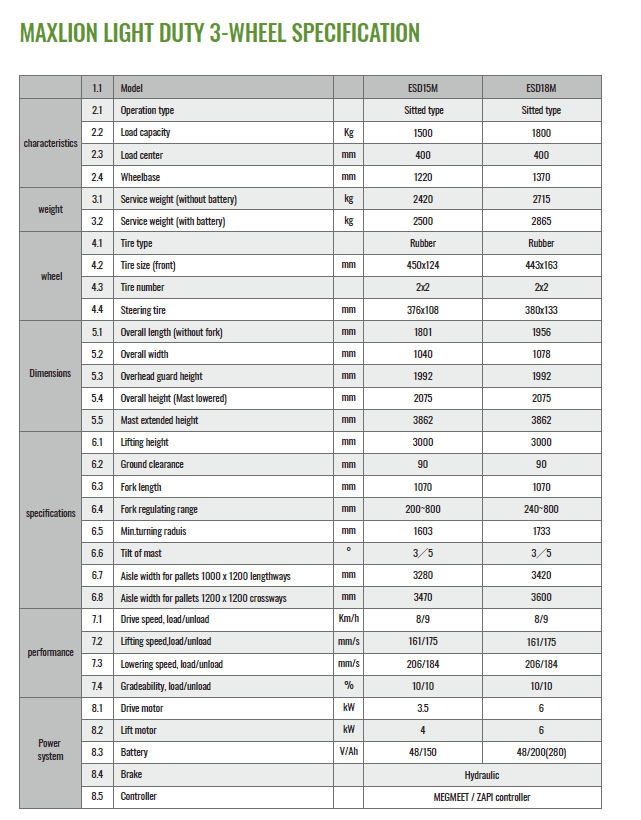

Tech Specs

Characteristics

Model			ESD15M	ESD18M
Power type			Electric
Optional Battery			48/135(200/280)V/Ah	48/200(280)V/Ah
Rated capacity			1500kg	1800kg
Load centre			400mm
Lift height			3000mm
Min.turning radius			1603mm	1733mm
Overall Dimension	Length(without fork)		1801mm	1956mm
Width			1040mm	1078mm
Height when mast lowered			2075mm	2075mm
Height to safeguard			1992mm	1992mm
Speed	Travel(Unladen/Laden)	km/h	11/10	11/10
Lifting(Unladen/Laden)		mm/sec	300/250	300/250

On-site Showcase
