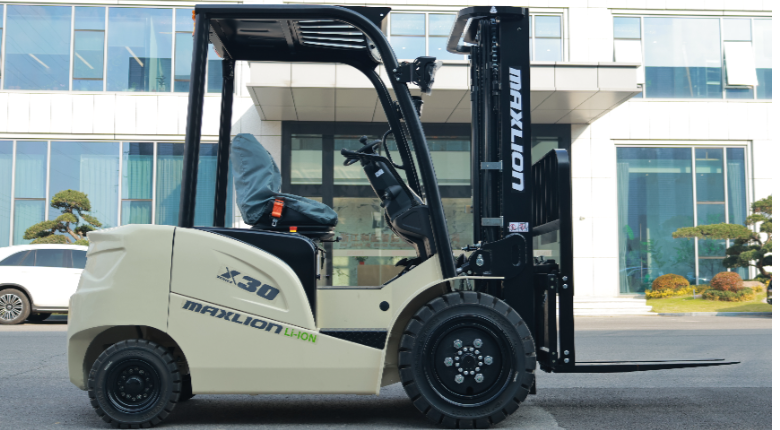

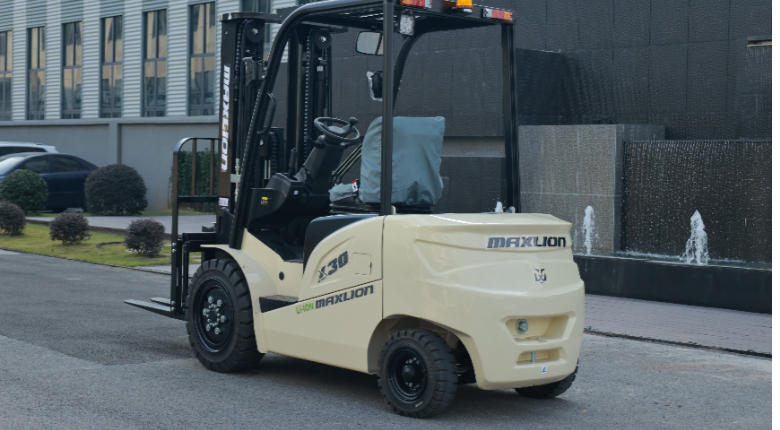

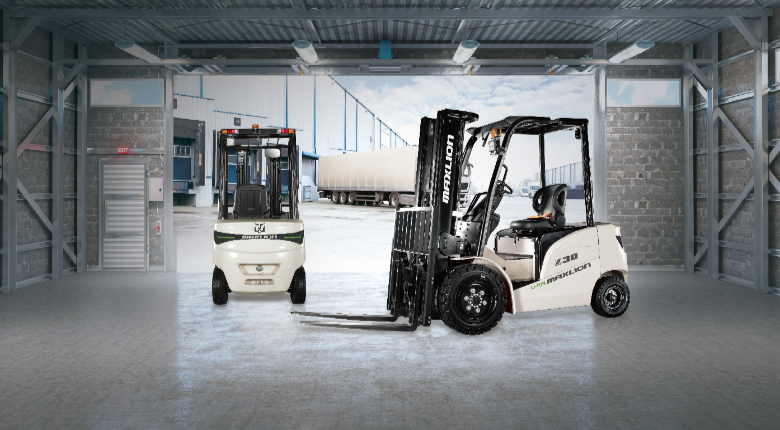

X Series New Li-ion Electric Forklift 1.5-3.8T

Maxlion's "X" Series Forklift is designed for the driver. Maxlion engineers have focused on improving the comfort and safety for new series forklifts, with lower noise levels, less vibration, more safety, and every small detail carefully designed prepared for the driver.

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

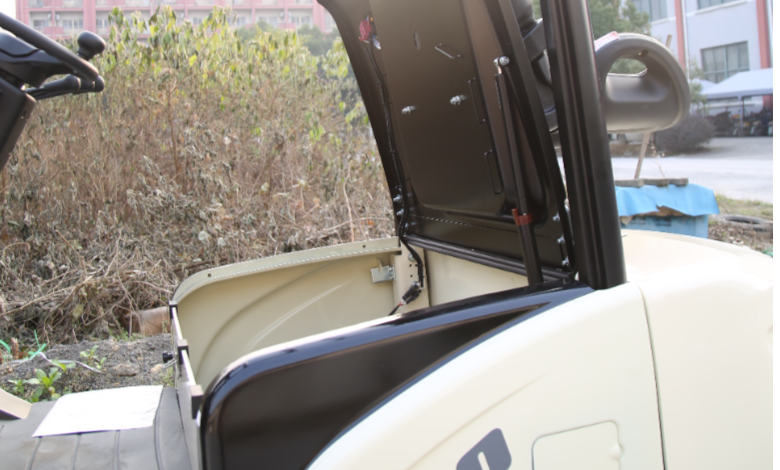

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

"Maxlion New Lithium-ion Forklift"

Features

Simple, Solid, Durable Ergonomic Design for Comfort

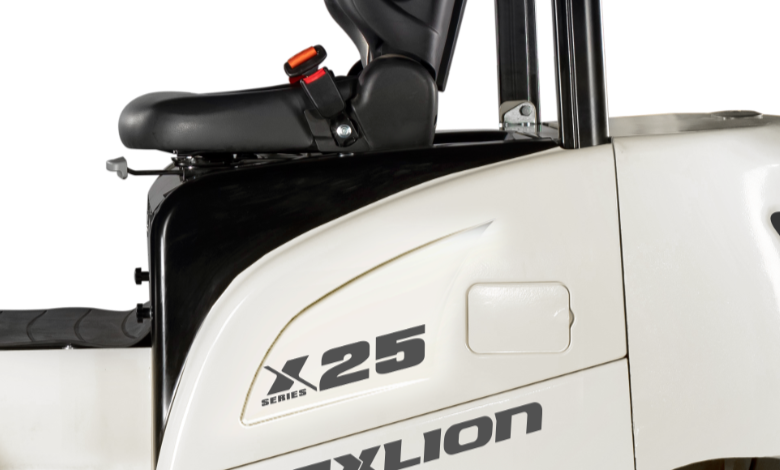

 Enhanced durability with die-cast iron side panels and injection-molded instrument cover.

Provides a raised steering wheel and operating handle.

Optimal visibility of 3-stage mast.

Application

Retail & Wholesale

Warehousing & Logistics

Manufacturing

Food Beverage

Forklift Container Unloading

Tech Specs

Characteristics

Model			FB25-EH	FB28-EH	FB30-EH	FB35-EH	FB38-EH
Power type			Electric
Optional battery			76.8V/280-460Ah 80V/205Ah
Rated capacity			2500kg	2800kg	3000kg	3500kg	3800kg
Load centre			500mm
Min.turning radius			2165	2165	2270	2270	2300
Lift height			3000mm
Overall Dimension	Length(without fork)		2485	2485	2590	2607	2639
Width			1150	1150	1210	1210	1210
Height when mast lowered			2010	2010	2075	2150	2150
Height to safeguard			2180	2180	2205	2205	2205
Speed	Travel(Unladen/Laden)	km/h	18/17	18/16	18/17	18/17	18/16
Lifting(Unladen/Laden)		mm/sec	460/350	460/330	460/350	420/330	420/300
